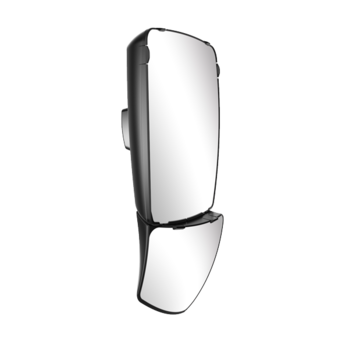

MODULAR MIRROR 1009
Glass-Size

Main mirror 225 x 286 mm (W x H)
Close-proximity mirror 178 x 91 mm (W x H)

Curvature Radius

Main mirror 1200 mm
Close-proximity mirror 240/300 mm

Mounting-Side

right and left side

Heating

unheated or heated 12 or 24 V

Adjustment

manual or electrical 1 or 24 V

Adjustment-Range

up / down: > ±8° - left / right: > ±8°

Mounting-Interface

Clamp for 18-22 or 28 mm tube diameter

On-Board Power Supply Connection

2- or 6-lead flange socket,
additional options upon request

Material

shock-proof ASA plastic, black, UV resistant

Available in following colors:

Other variants on demand
